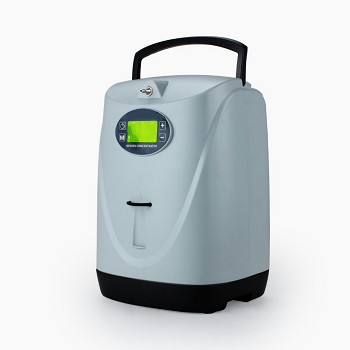

OX-1A Portable Oxygen Concentrator 1~5L flow adjustable

-







Video: How to operate OX-1A Portable Oxygen Concentrator

Flow Range (lpm)         0.5 -5 LPM
Maximun Flow             5 LPM
Oxygen Purity:
93%±3%（0.5 ~1LPM）
80%±3%（2LPM）
65%±3%（3LPM）
55%±3%（4LPM）
50%±3%（5LPM）
Output Pressure             58 ± 6 Kpa
Weight                           5.2kg
Dimension(mm)            200 (L) x 230 (W) x 325 (H)
Noise Level                   < 36 db(A)
Electrical Requirement  220V/50Hz, 115V/60Hz, DC12V
Power Consumption      90W（AVER ）
